LCR3 Radio controlled overfill prevention systems

LCR3 Radio controlled overfill prevention systems product overview:

LRC3 PROGRAMMING DEVICE

lrc3 ueberfuellsicherung programmiergeraet

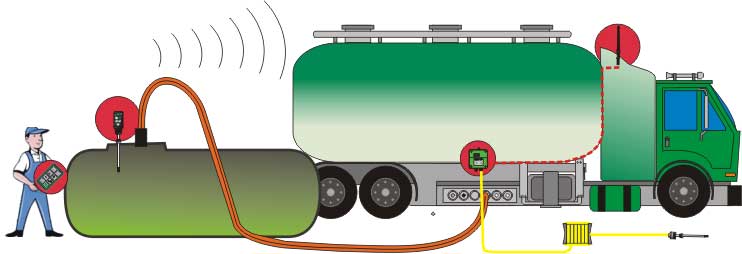

LRC 3, is a radio controlled overfill prevention system with integrated cable solution. It is designed for the loading process of stationary and mobile tanks (e.g. tank trucks) in the non-EX area.

Following functions can be performed with LRC 3:

  • Motor (pump) start / stop
  • Filling start / stop
  • Rotational speed control
  • Loading process interruption
  • Wind / rewind hose drum
  • Switch the auxiliary shaft to / and off
  • Additional freely definable remote control functions
  • Deadman operation and emergency stop
  • ANA function (Germany)-deadman
  • Automatic fill stop
  • For further activations of the tank truck management system from the tank with the remote control LRC 3 Remote are possible in conjunction with TWM from Horn Tecalemit - see www.tecalemit.de; SAM Meter or Dezidata Meter.

The following types of limiters can be addressed:

  • Limit value transmitter according to TRbF (PTC thermistor probes - German standard EN13616)

Overfill is reliably prevented in combination with limit probes.

APPLICATION AREAS:

  • Mineraloil products not EX
  • Heating Oil products
  • Chemical products not EX
  • Foods Industry
  • Loading/unloading of road tankers
  • Filling of stationary tanks and much more

icon secutech schiff icon secutech truck icon secutech tank icon secutech radio

lrc3 ueberfuellsicherung

Advantages of LRC 3

  • Overfill prevention
  • Radio and cable -combined system
  • Additional Remote Control unit with display information
  • Several switching outputs
  • CAN bus output
  • Remote Control incl. deadman
  • Extra light weight housing
  • Lightweight, replaceable Lilo battery
  • Price-performance benefits
  • Simple and space-saving design installation
  • Slim design
  • Improved handling
  • Optimized loading / unloading processes
  • Simplified work processes
    Time and cost savings
  • Safety and productivity increase
  • Environmental Protection
  • "Fail Safe" and "Fail to Safe System"
