LC100

LC 100 is an electronic instrument for displaying the tank contents in volume percent and liters. All common tank shapes are supported. The measurement is carried out without contact with 40 kHz ultrasonic pulses. The assembly is very simple. LC 100 is maintenance-free and highly reliable.

fuellstand lc100 LC 100 Conrad Image ENG

Level measurement by means of ultrasound in the tank. The display is mounted directly on the tank top or with a 5m cable connection near to the tank. The devices are available battery operated or equipped with mains plug.

Display / Information:

  • Tank content in liters
  • Tank content in percent
  • Distance in cm (from the sensor to the current level)

Consumption evaluation:

  • Average daily consumption in liters
  • Stock in days

APPLICATIONS:

  • Heating oil tanks
  • Water tanks
  • Rainwater tanks
  • Oil tanks
  • Lubricant tanks
  • AdBlue tanks

icon secutech tank Tankanzeige Ultraschall

Product variants

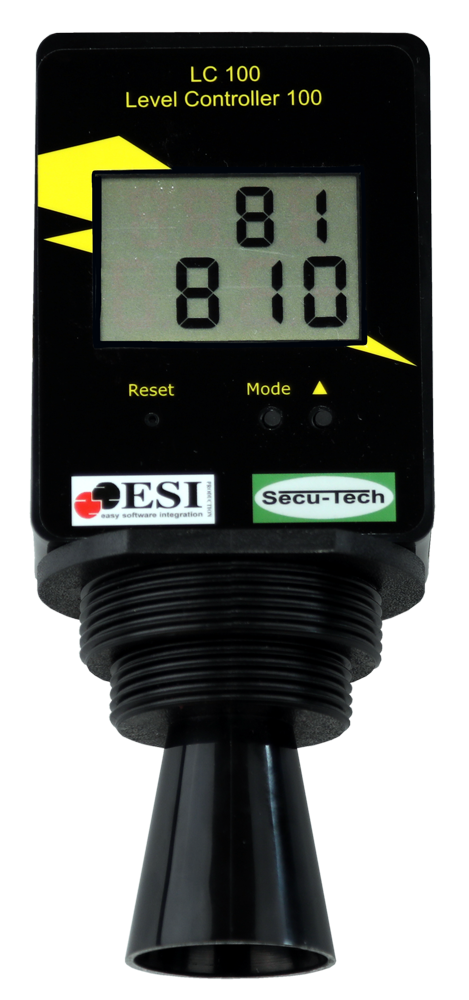

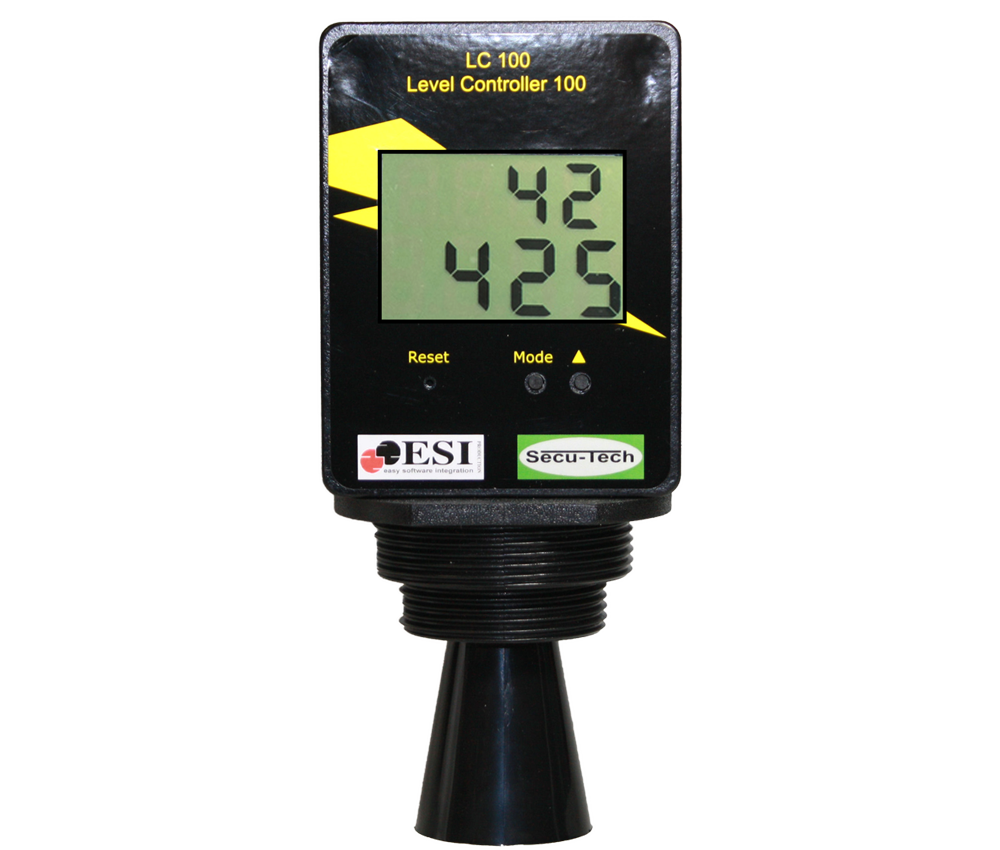

  • LC 100: Battery operated level indicator

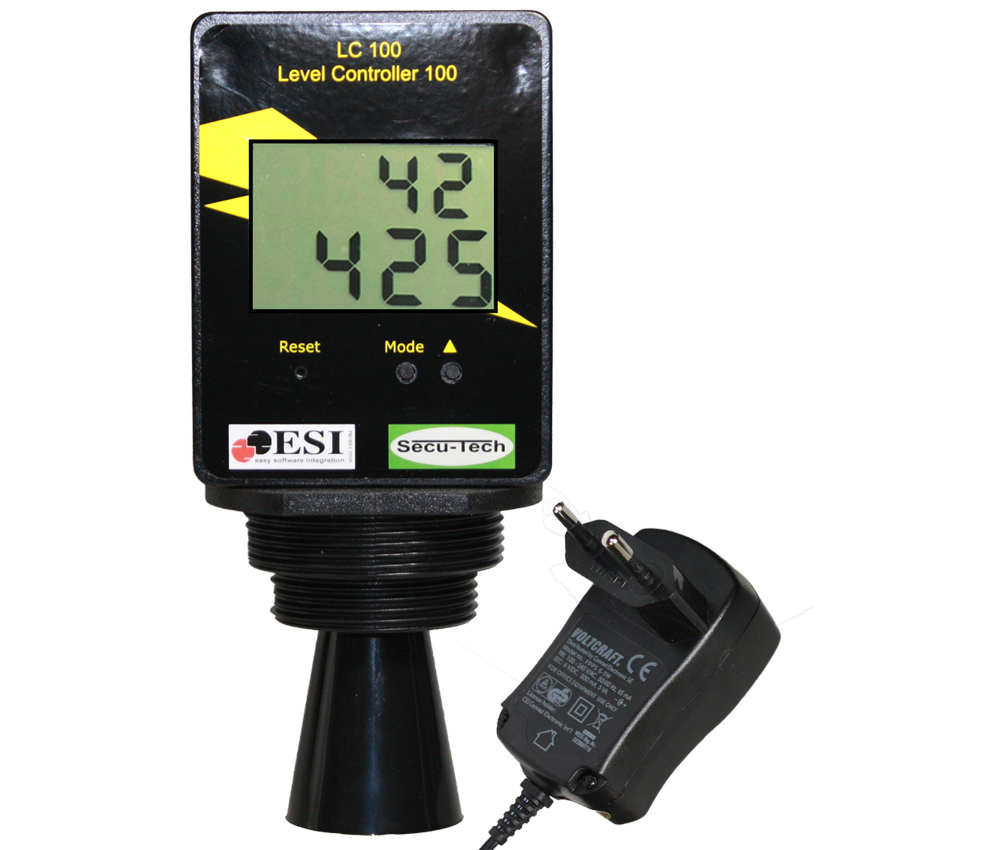

  • LC 101: 230V / 6V power supply / level indicator

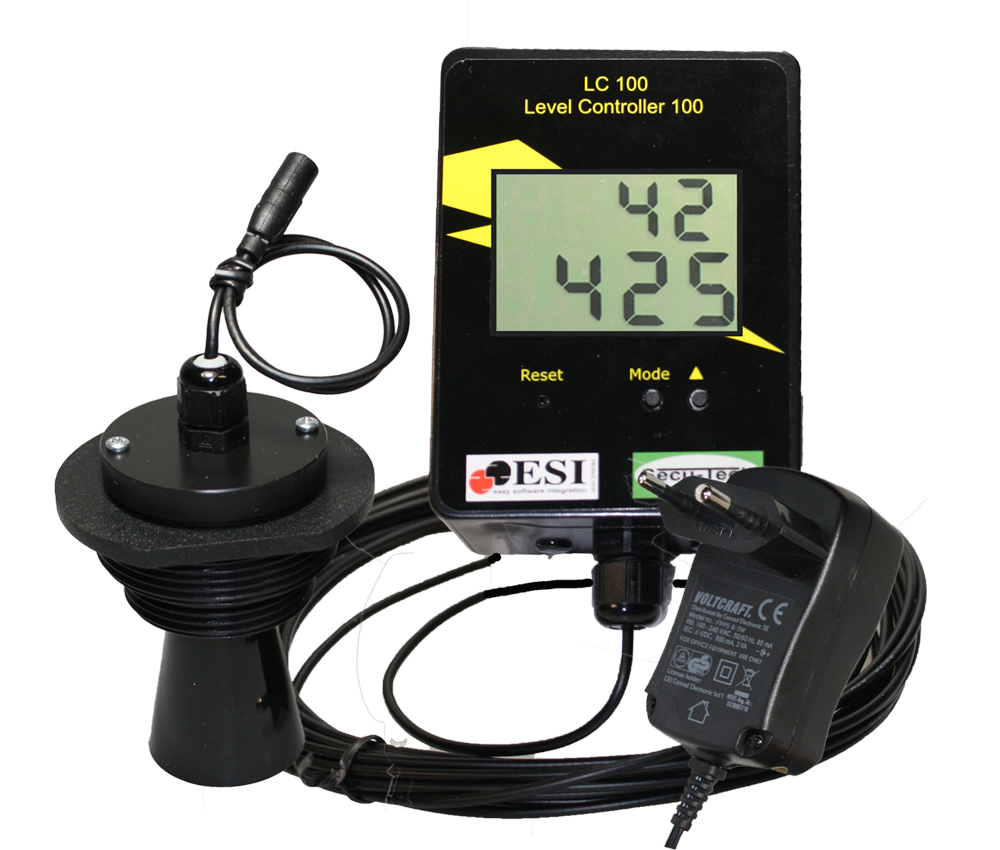

  • LC 102: 230V / 6V power supply + 5 m cable

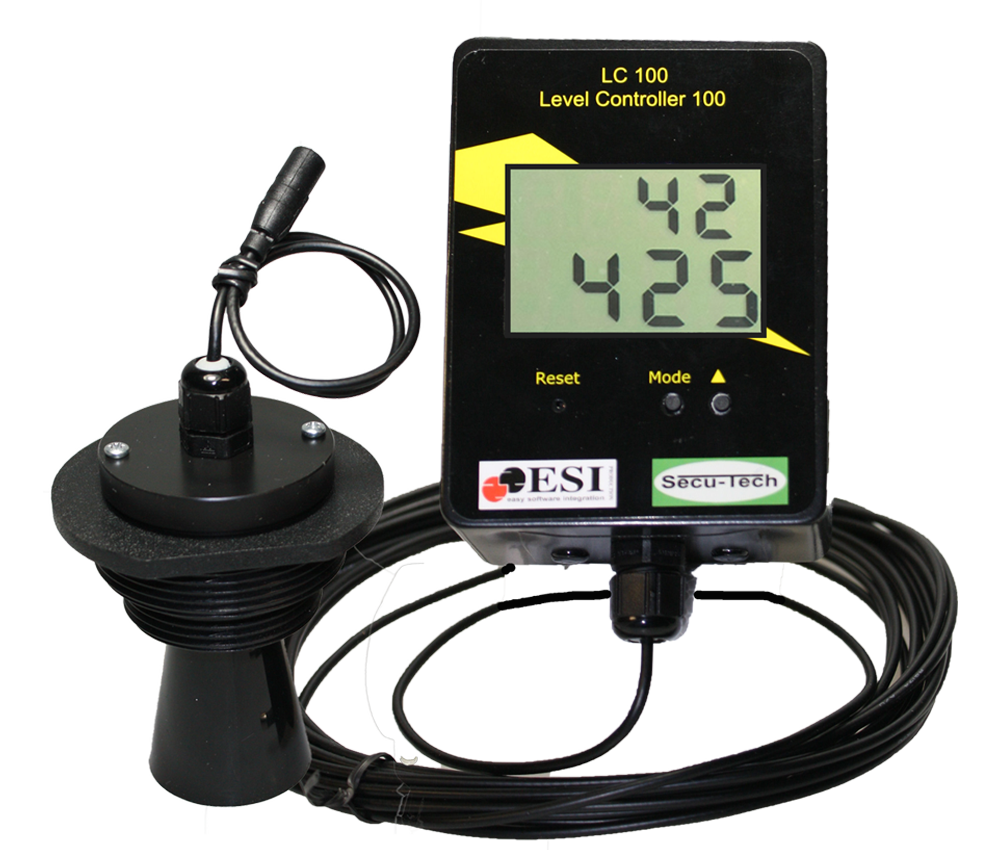

  • LC 103: Battery operated level indicator + 5 m cable

Change Settings - LC100

Show Results - LC100

LC100 09 2019

Application Example: LC 100 for chemical applications

An application report from a satisfied customer:

Our customer produces flexible packaging material at his location. Solvent-based inks, varnishes and adhesives are used in the printing and lamination production steps; the drying process takes place in encapsulated dryers, the exhaust air of which is fed to a recovery system for solvents; In this, the recovered solvents are then processed by rectification to the extent that they can be returned to the production process. An evaporative cooling system with an open cooling circuit is assigned to the operation of the rectification system. The cooling water must be treated with various liquid conditioning agents for safe operation. These are stored in 200l containers, from which pumps are then used for dosing.

anwendungsbeispiel lc100 1

The fill level in the containers must be checked regularly to assess the correct dosage. The classification of some conditioning agents as harmful and corrosive led, after a risk analysis was carried out, to the wish that this level measurement should be carried out without contact. In addition, the level measurement had to be sufficiently resistant to the conditioning agent, which meant that no weighing system could be used (small leakage quantities, sensitive measuring system). Since the containers are changed regularly, a permanent installation was also ruled out. All previous experiments with measuring systems in contact with the product, for example tank level measurements according to the differential pressure measuring principle, had to be terminated after a short duration of the experiment.

The choice was therefore made for the LC 100 measuring system from Secu-Tech (Security & Electronic Technologies GmbH, Austria), as according to the product description, this meets all the requirements for the desired level measurement.

anwendungsbeispiel lc100 2

In April 2020, the customer made an initial request to Secu-Tech; They offered to initially make a device available for testing purposes in order to test its suitability for the application.

Test procedure

  • April 21, 2020 request
  • 22 April 2020 offer for test device
  • April 29, 2020 Delivery and installation of the test device with measuring tube; Additional sealing of the housing all around with silicone to protect the electronics against product vapors. anwendungsbeispiel lc100 3 anwendungsbeispiel lc100 3
  • June 23, 2020 Report on the first test result; the level measurements did not decrease, although the product was removed from the container (check with a folding rule). Repeated recalibrations of the device were unsuccessful. Probable cause of reflections of the ultrasonic measuring signal on the measuring tube wall. Re-installation without a measuring tube directly inserted into the container opening show better results. The test will continue under the changed conditions
  • July 16, 2020 Positive completion of the test phase;

Conclusion:

The LC100 non-contact level measuring device is very well suited for the application described. The resistance to the cooling water conditioning agents has been sufficiently proven. The level in the containers can be determined easily and with sufficient accuracy.
