LRC SHIP BUNKERING

LRC ADN SHIP CONSISTS OF THE FOLLOWING COMPONENTS:

LRC SMALL

lrc small ueberfuellsicherung

LRC SMALL SHIP

lrc schiffbunkern ueberfuellsicherung optische sensoren

LRC CHARGER

lrc adn ladegeraet

LRC RC-2

lrc small fernbedienung

LRC SMALL REMOTE

lrc small fernbedienung ex

CABEL OPTICAL PROBE

lrc schiffbunkern ueberfuellsicherung kabel optisch

CABLE THERMISTOR (PTC) or OPTICAL

lrc adn adapterkabel

LRC REC2

lrc adn empfaengerbox antenne

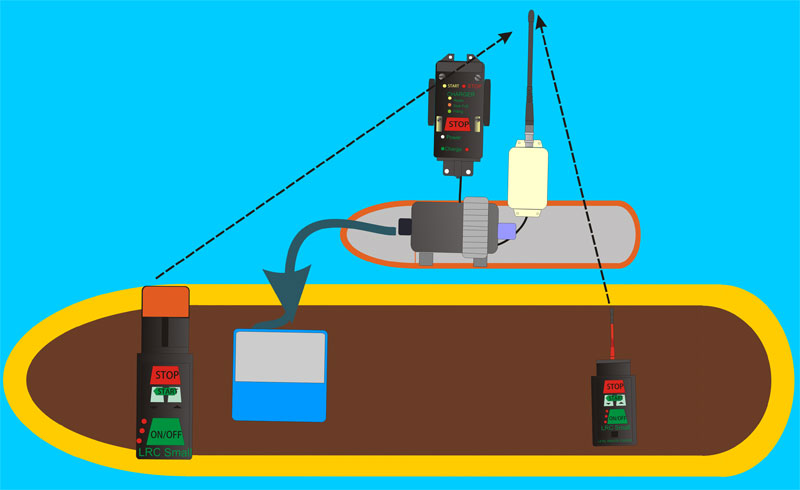

LRC-Small is a complete radio controlled overfill prevention system. It is designed for filling stationary and mobile tanks (e.g. tank trucks, ships). For the loading of ships with fuel, it is mandatory in the European Union for inland waters to use overfill prevention system. This is an optical sensor for e.g. Dutch ships, for German and other ships an electronic limit switch according to EN13616, for other ships a floating probe. All 3 systems can be covered with LRC-Small Ship Bunkering System.

The following functions can be performed with LRC Small:

  • Motor (pump) start / stop
  • Filling start / stop
  • Rotational Speed control
  • Loading process interruption
  • Reel / reel off hose
  • Dead man function
  • ANA function (Germany)
  • Automatic fill stop

The following types of limiters can be addressed:

  • Limit value transmitter according to TRbF (PTC thermistor probes - German standard EN13616)
  • Float probes (nose on 10h)
  • Optical limit switches (Swiss standard, ship standard BeNeLux)
  • Probes with relay contact

APPLICATION AREAS:

  • Equipment for overfill prevention at bunker stations and in bunker ships for the safe refueling of transport vessels and ships of any kind.

icon secutech schiff

schiffbunkern

ADVANTAGES LRC SMALL RADIO REMOVAL AND OVERFLOW PREVENTION:

  • Overfill prevention
  • No use of cables (in ship bunkers, the use of cables is particularly difficult and the cables are very susceptible to defects)
  • Optimized loading/unloading processes
  • Simplified work processes
  • Time and cost savings
  • Safety and productivity increase
  • Environmental protection
  • Suitable for any product
  • „Fail Safe“ and „Fail to Safe System“

Product Information LRC SHIPBUNKERING
